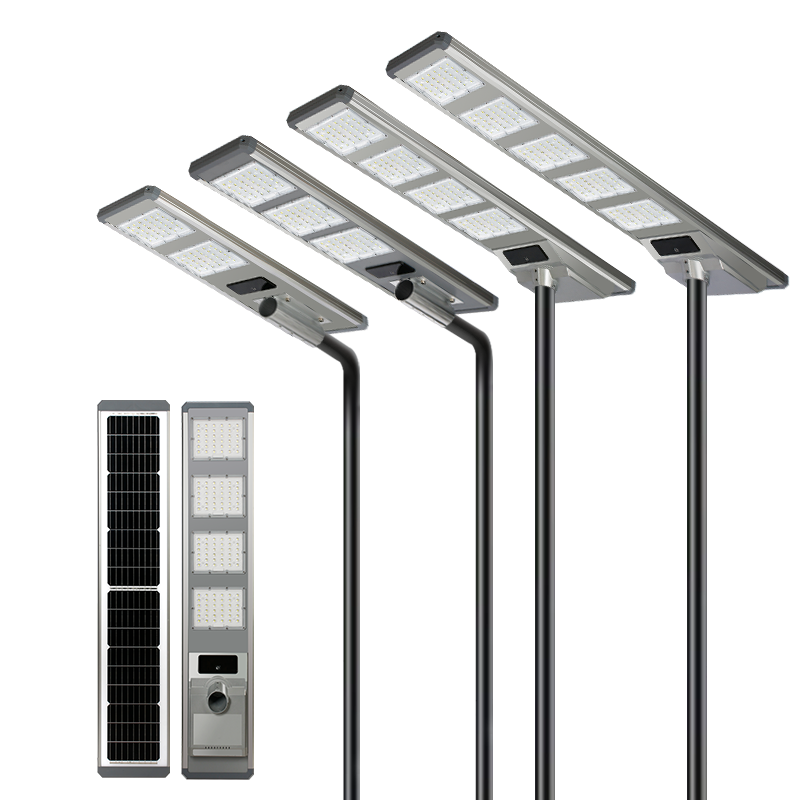

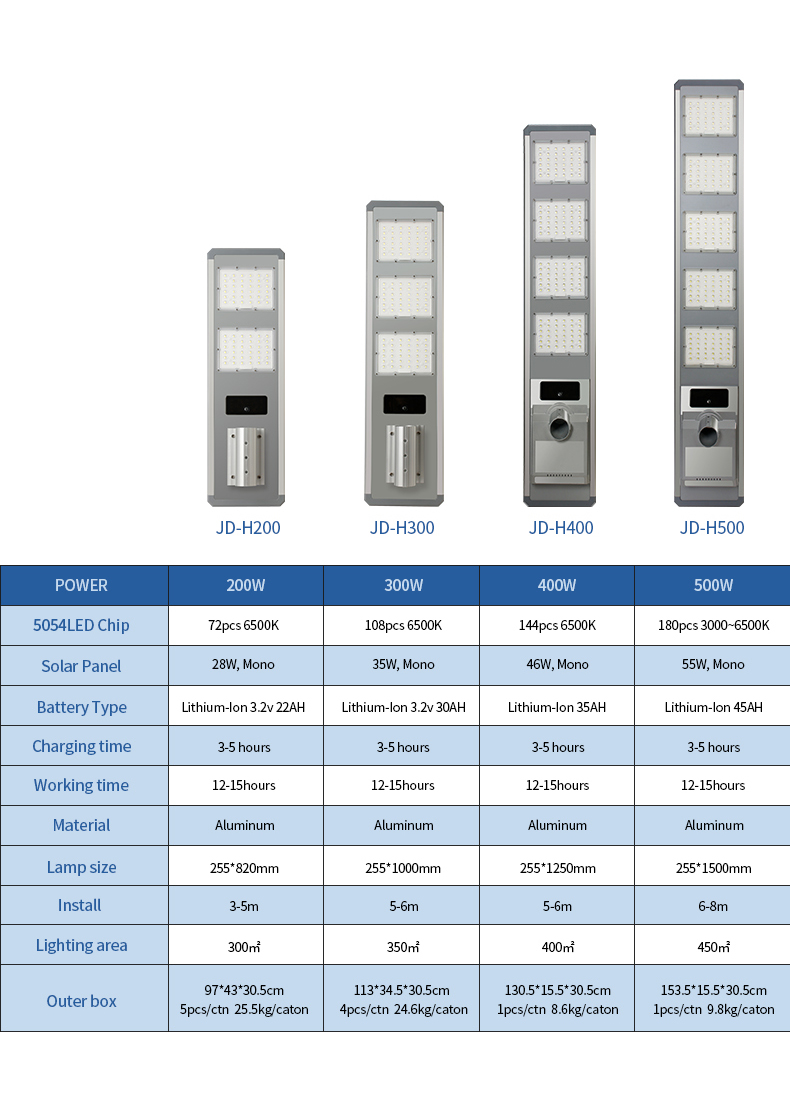

Product parameters |
JD-H200 |
JD-H300 |
JD-H400 |
JD-H500 |

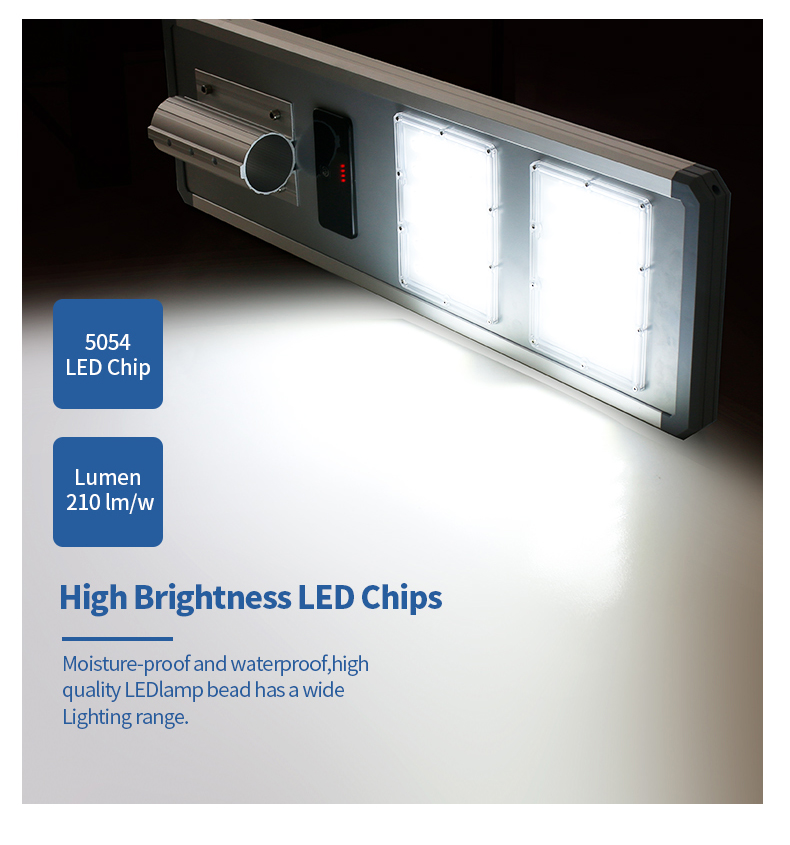

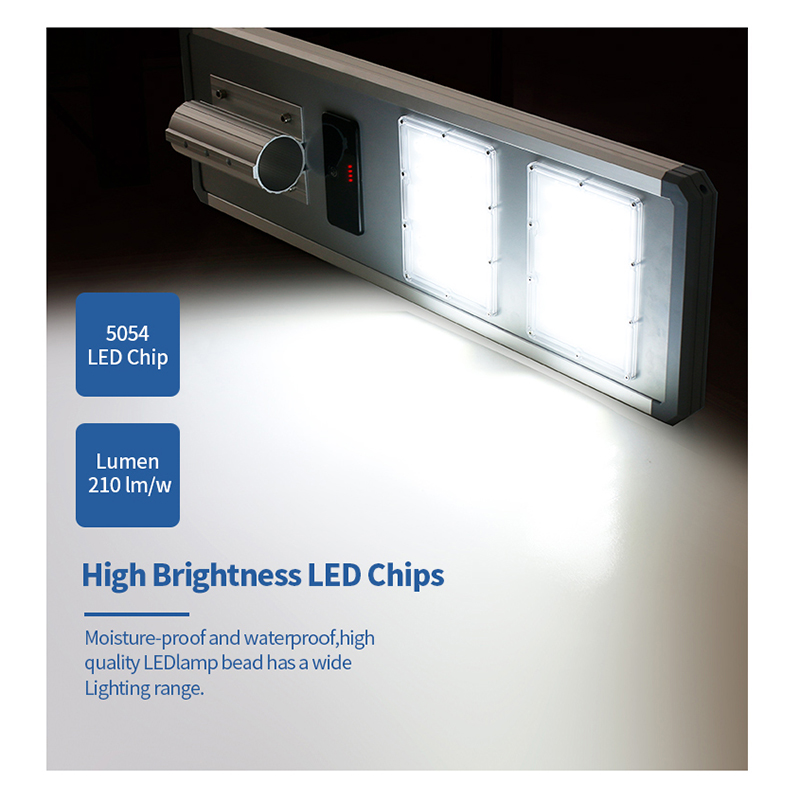

LED lamp (5054SMD) | 72pcs 6500K | 108pcs 6500K | 144pcs 6500K | 180pcs 3000K-6500K |

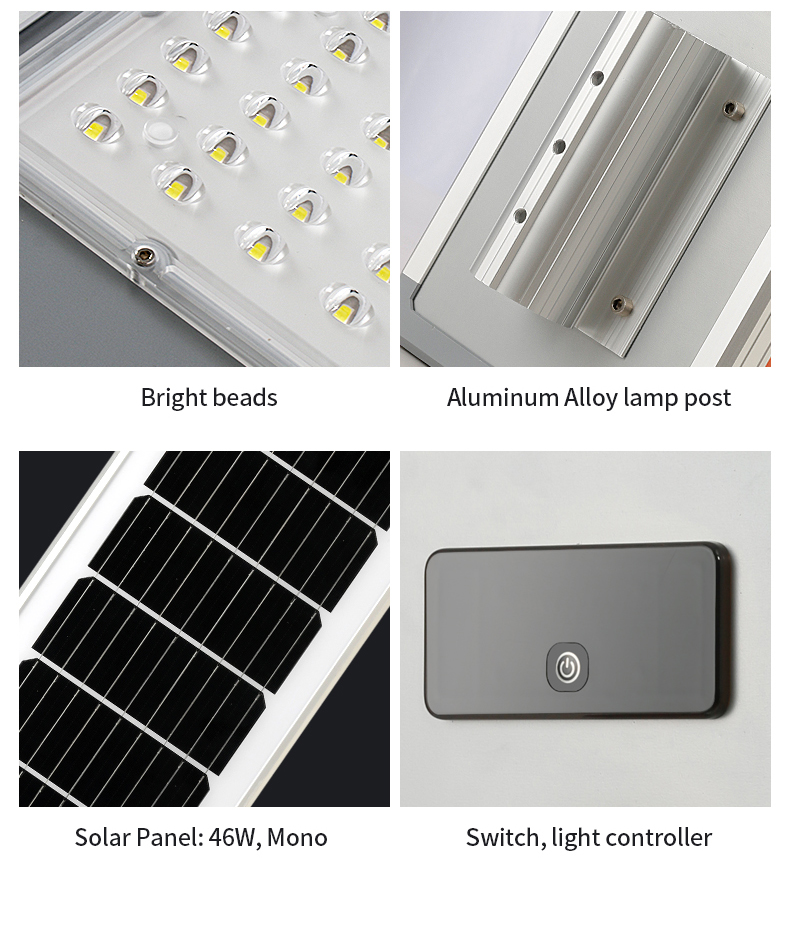

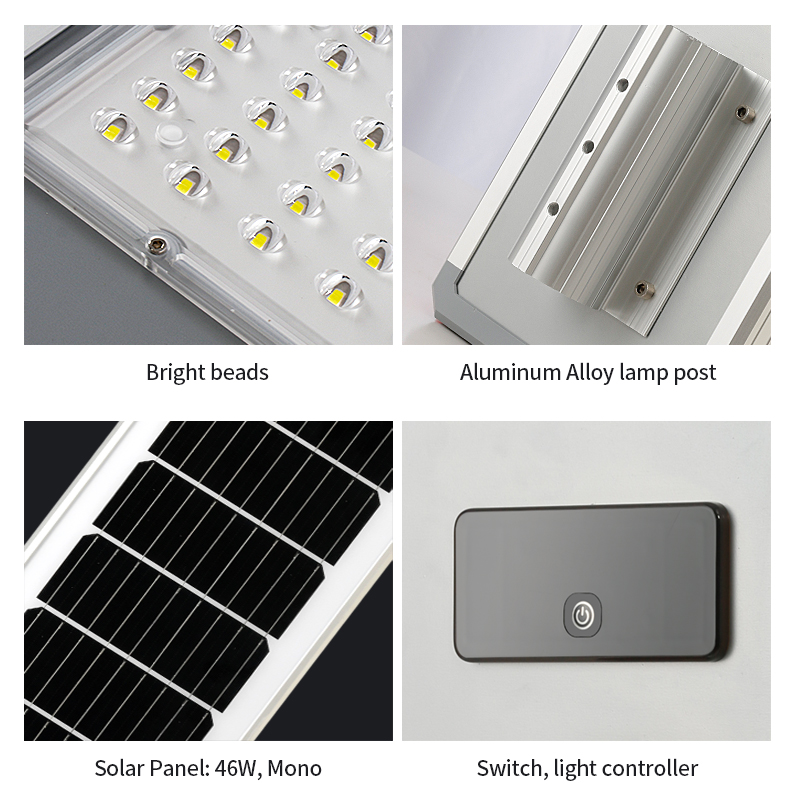

Solar panel | 28W, Mono | 35W, Mono | 46W, Mono | 55W, Mono |
Battery type | Lithium-lon 3.2v 22AH | Lithium-lon 3.2v 30AH | Lithium-lon 35AH | Lithium-lon 45AH |
Charging time | 3-5H | |||
Working time | 12~15H | |||
Material | Aluminum | |||
Lamp size | 255*820mm | 255*1000mm | 255*1250mm | 255*1500mm |
Install height | 3-5M | 5-6M | 6-8M | 6-8M |
| Lighting area | 300 ㎡ | 350 ㎡ | 400 ㎡ | 450 ㎡ |
Warranty | 2 years | |||
| Outside package size | 97*43*30.5cm 5pcs/ctn 25.5kg/caton | 113*34.5*30.5cm 4pcs/ctn 24.6kg/caton | 130.5*15.5*30.5cm 1pcs/ctn 8.6kg/caton | 153.5*15.5*30.5cm 1pcs/ctn 9.8kg/caton |

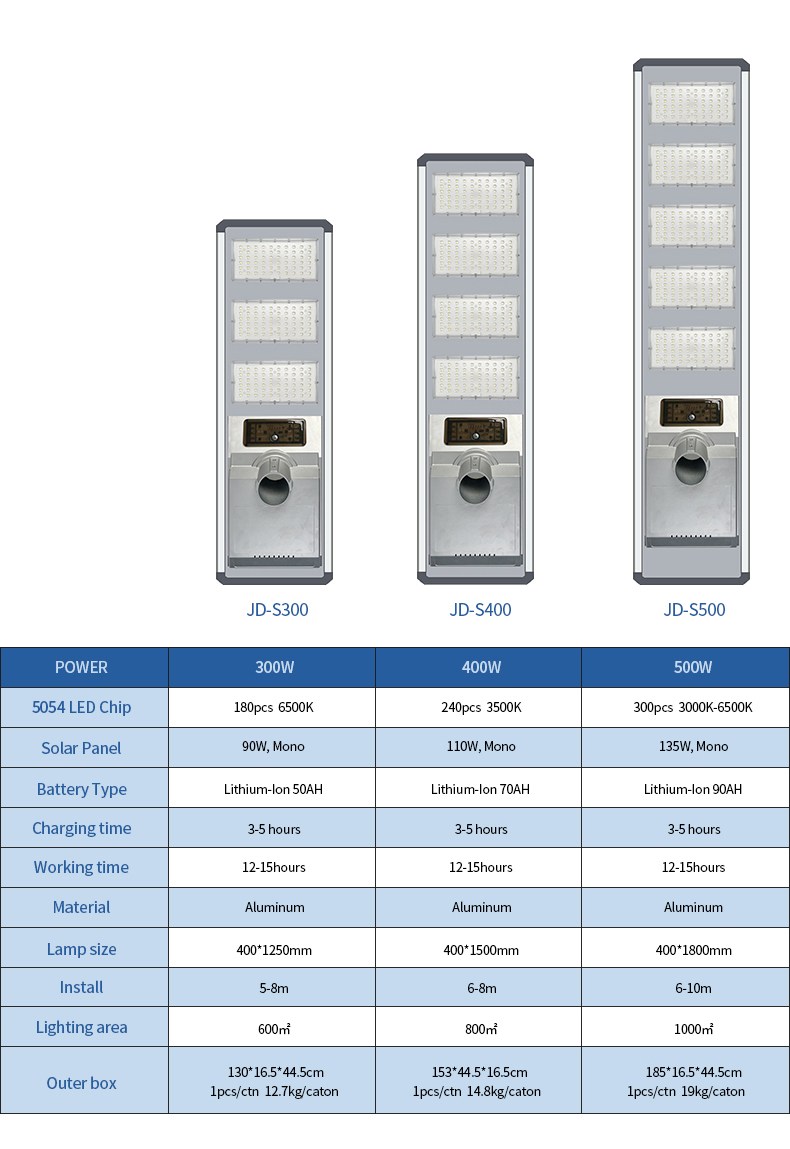

Product parameters |
JD-S300 |
JD-S400 |
JD-S500 |
LED lamp (5054SMD) | 180pcs 6500K | 240pcs 6500K | 300pcs 3000K-6500K |
Solar panel | 90W, Mono | 110W, Mono | 135W, Mono |
Battery type | Lithium-lon 50AH | Lithium-lon 70AH | Lithium-lon 90AH |
Charging time | 3-5H | ||
Working time | 12~15H | ||
Material | Aluminum | ||
Lamp size | 400*1250mm | 400*1500mm | 400*1800mm |
Install height | 5-8M | 6-8M | 6-10M |
| Lighting area | 600 ㎡ | 800 ㎡ | 1000 ㎡ |
Warranty | 2 years | ||
| Outside package size | 130*16.5*44.5cm 1pcs/ctn 12.7kg/caton | 153*44.5*16.5cm 1pcs/ctn 14.8kg/caton | 185*16.5*44.5cm 1pcs/ctn 19kg/caton |
Product parameters |
JD-H200 |
JD-H300 |
JD-H400 |
JD-H500 |
LED lamp (5054SMD) | 72pcs 6500K | 108pcs 6500K | 144pcs 6500K | 180pcs 3000K-6500K |
Solar panel | 28W, Mono | 35W, Mono | 46W, Mono | 55W, Mono |
Battery type | Lithium-lon 3.2v 22AH | Lithium-lon 3.2v 30AH | Lithium-lon 35AH | Lithium-lon 45AH |
Charging time | 3-5H | |||
Working time | 12~15H | |||
Material | Aluminum | |||
Lamp size | 255*820mm | 255*1000mm | 255*1250mm | 255*1500mm |
Install height | 3-5M | 5-6M | 6-8M | 6-8M |
| Lighting area | 300 ㎡ | 350 ㎡ | 400 ㎡ | 450 ㎡ |
Warranty | 2 years | |||
| Outside package size | 97*43*30.5cm 5pcs/ctn 25.5kg/caton | 113*34.5*30.5cm 4pcs/ctn 24.6kg/caton | 130.5*15.5*30.5cm 1pcs/ctn 8.6kg/caton | 153.5*15.5*30.5cm 1pcs/ctn 9.8kg/caton |
Product parameters |
JD-S300 |
JD-S400 |
JD-S500 |
LED lamp (5054SMD) | 180pcs 6500K | 240pcs 6500K | 300pcs 3000K-6500K |
Solar panel | 90W, Mono | 110W, Mono | 135W, Mono |
Battery type | Lithium-lon 50AH | Lithium-lon 70AH | Lithium-lon 90AH |
Charging time | 3-5H | ||
Working time | 12~15H | ||
Material | Aluminum | ||
Lamp size | 400*1250mm | 400*1500mm | 400*1800mm |
Install height | 5-8M | 6-8M | 6-10M |
| Lighting area | 600 ㎡ | 800 ㎡ | 1000 ㎡ |
Warranty | 2 years | ||
| Outside package size | 130*16.5*44.5cm 1pcs/ctn 12.7kg/caton | 153*44.5*16.5cm 1pcs/ctn 14.8kg/caton | 185*16.5*44.5cm 1pcs/ctn 19kg/caton |
